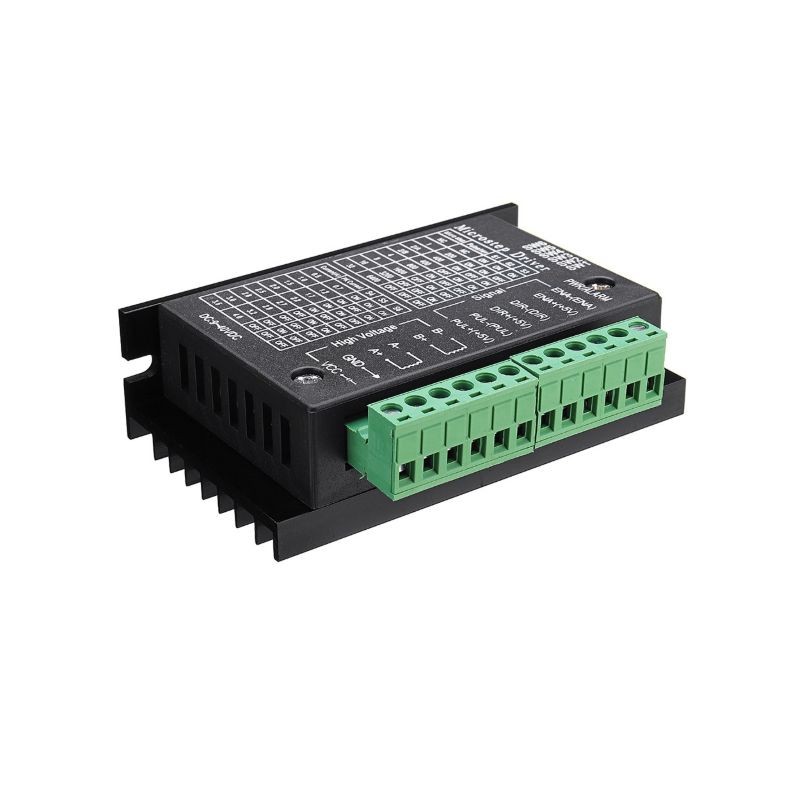

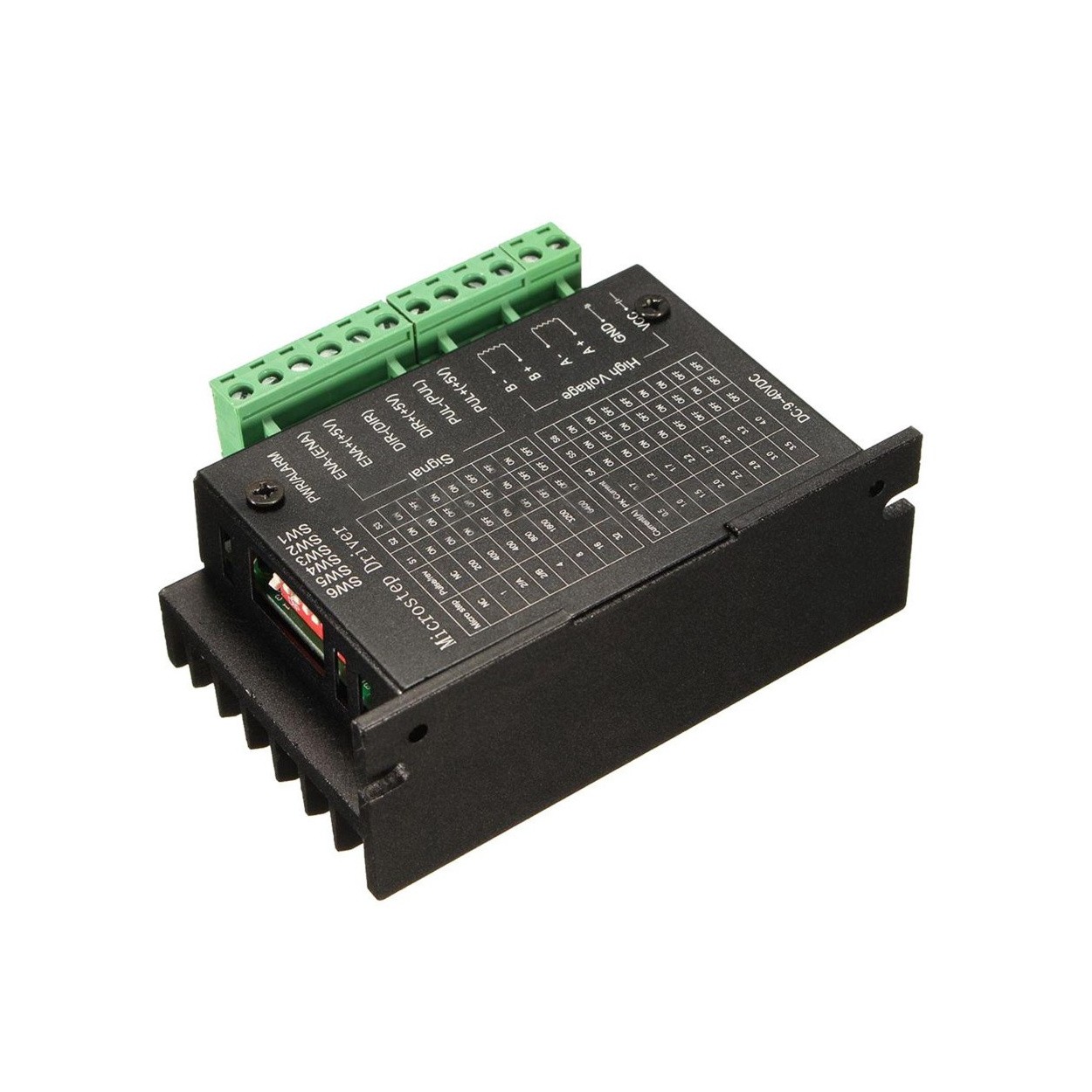

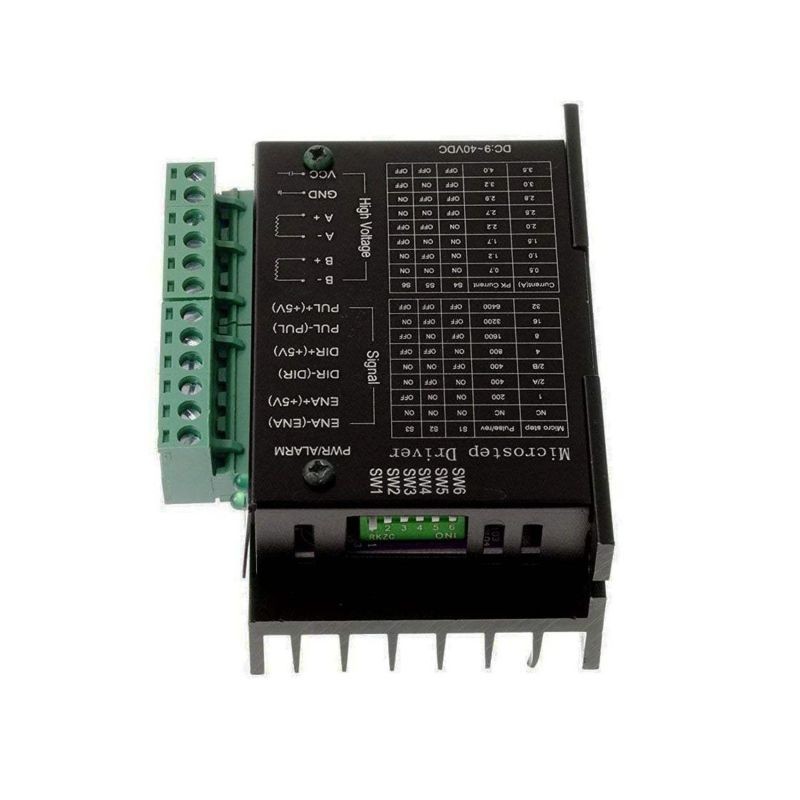

TB6600 Stepper Motor Driver Controller 4A 9-42V TTL 16 Micro-Step CNC 1 Axis for Nema Stepper Motors

    0 (0 feedbacks)
    0 orders   Sold By Easy Go
    MRP: ₹2,999.00 Save 79%
    Price:
    ₹624.00
    (Exclusive of all taxes)

    ₹736.32

    / Piece (Inclusive of all taxes)

    📦 Seller Bulk Price Details:

    From To Bulk Price (₹)
    20 49 ₹ 614
    50 99 ₹ 604

    Note: Once you adjust the quantity in BonziCart, the price will automatically update according to the bulk pricing offer by seller. BonziCart always suggests purchasing in bulk under a business name with a registered GST number to avail the GST benefits.

    Replacement

    7 Days

    Processing

    15 days

    Shipping

    4 days

    Seller

    Karnataka

    Warranty

    No

    Quantity
    (Stock  100  pieces)
    Want to buy in bulk. Click here
    Shipping
    Free Shipping
    COD Not Available
    Action
    Promotions
    ✂️ Get Seller Coupons 🎁
    5%
    NEW USER
    5% OFF ON YOUR PURCHASE
    Valid on orders over ₹0
    Redeem before 13/11/2030, 11:56:00 am
    Use Code: NEWUSER
      Sold By
    Easy Go
    Positive Sentiment
    Followers
    Contact Seller
    Visit Store
    Seller Return Policy
    Buyer Protection

    FAQ view

    FAQ

    Specification













    Description

    Package Includes
    1 X Stepper Driver
    Manufactured in China
    0 (0 feedback) | 0 Orders
    0 Out Of 5 Stars
    • 5 stars :
      0
    • 4 stars :
      0
    • 3 stars :
      0
    • 2 stars :
      0
    • 1 stars :
      0
    Ad****e Ni**s

    Delivered on time and item as described, Thanks

    FAQ
    A: It supports DC input from 9 V to 42 V
    A: It can output up to 4 A (peak) and drives two‑phase bipolar (or hybrid 2‑phase/4‑phase) stepper motors such as 42, 57, or 86‑type motors

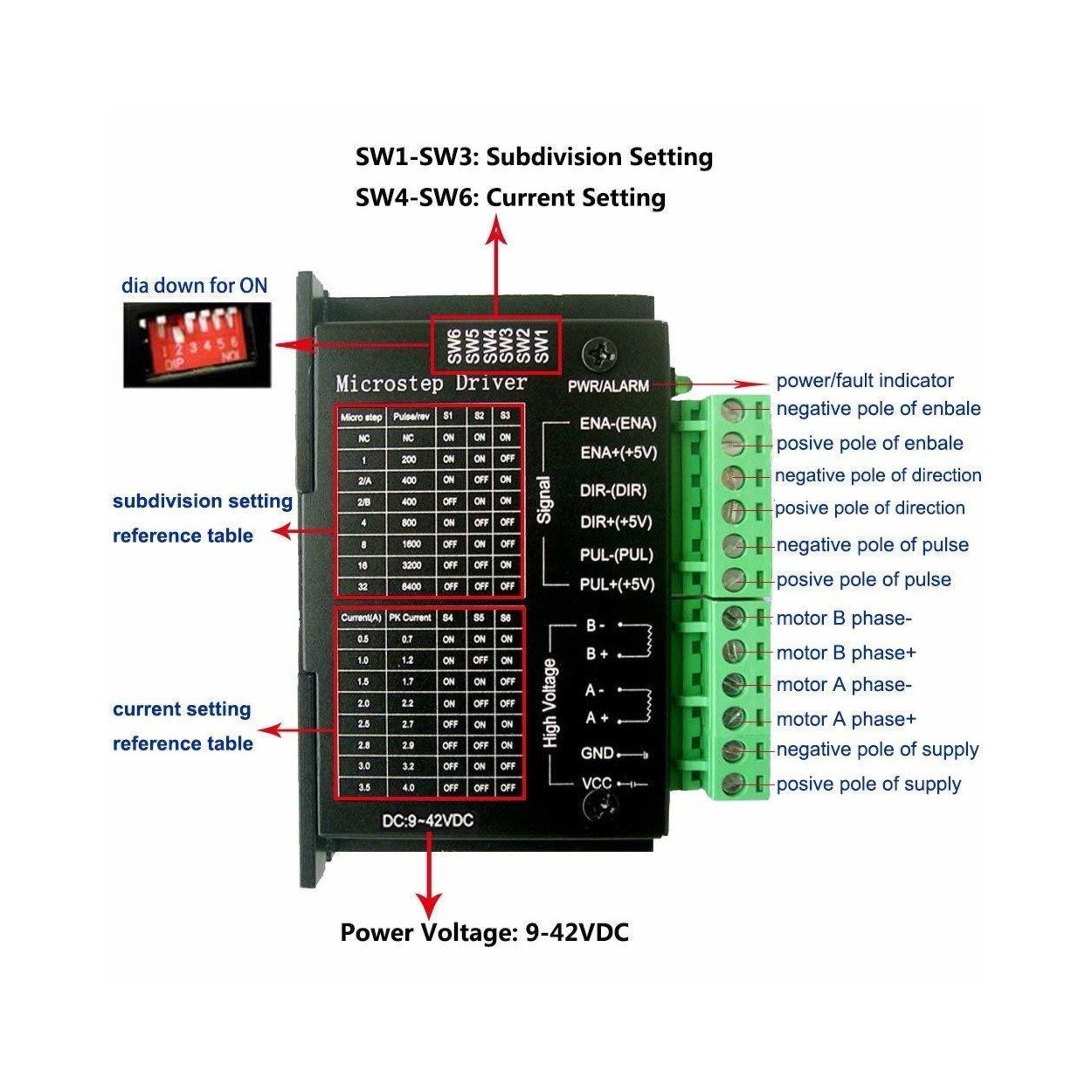

    A: Yes it supports multiple microstep modes — full step, 1/2, 1/4, 1/8, 1/16 and 1/32 (with configuration via DIP switches)
    A: It uses a standard pulse (step) and direction (DIR) interface (TTL logic), so you can control speed via pulse frequency and direction via the DIR signal
    A: It includes protections like over‑current, over‑temperature, and under‑voltage protection; plus opto‑isolated inputs to reduce interference
    A: It is suitable for CNC machines, 3D printers, laser engravers, robotic arms, XY tables — any project using compatible stepper motors needing reliable step and direction control
